Mast

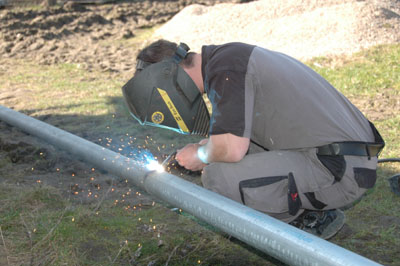

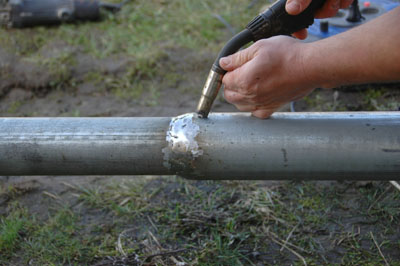

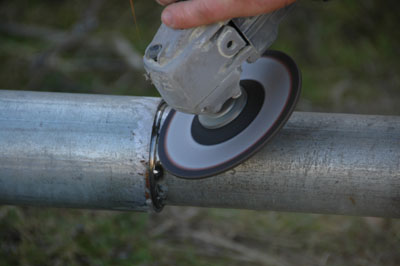

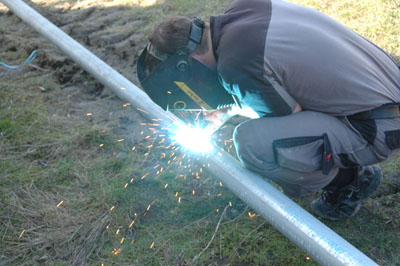

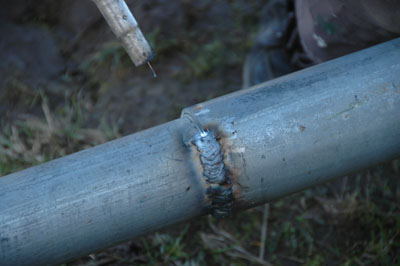

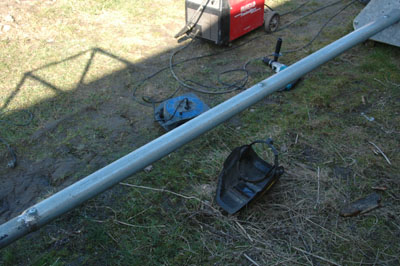

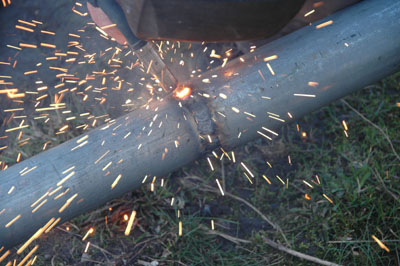

| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together |
|

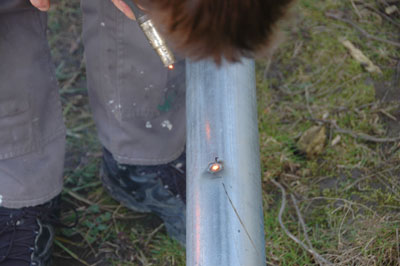

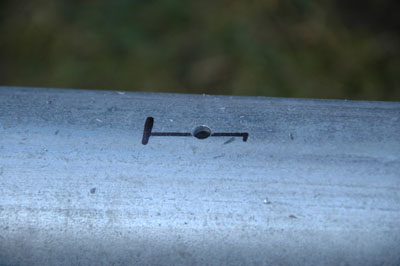

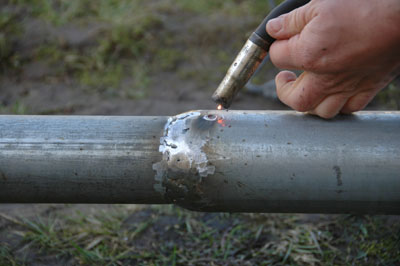

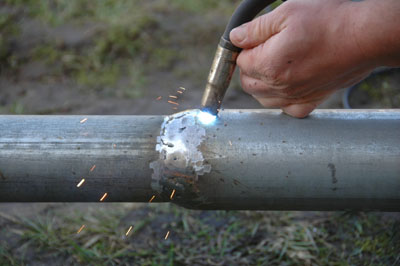

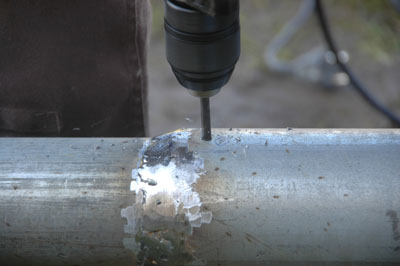

| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Outer and inner top-tube: 91 mm (3") and 76 mm (2,5") - welded together (also via 8 mm holes down the tubes) |
|
| Not done yet... |
|

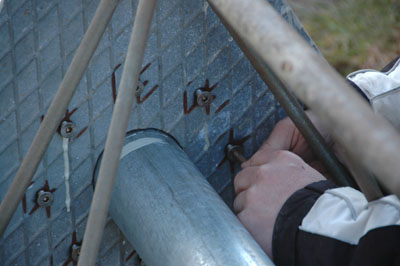

| The bearing (fitting a 3" tube) in top of the tower, inserted into a Speciel Designed Bearing House (stainless steel) |
|

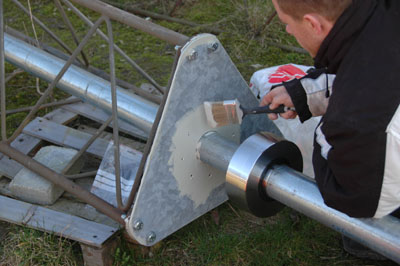

| Paiting the top plate (using maritime painting) |
|

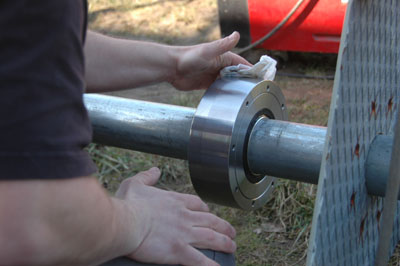

| Mounting the bearing (bearing house) to the top plate (seen from buttom) |
|

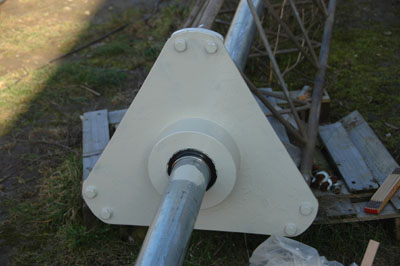

| Bearing house and top plate painted |
|

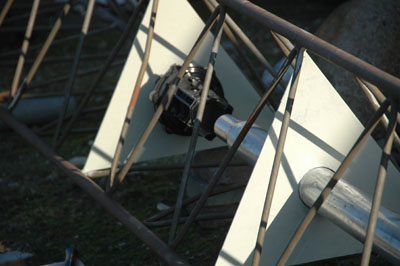

| Rotator and "stearing plate 1" painted. Notice the tube change of size from 3" to 2" (made in stainless steel) to fit into the rotator |
|
| Rotator and "stearing plate 1". After this we also inserted a "stearing plate 2" |
|

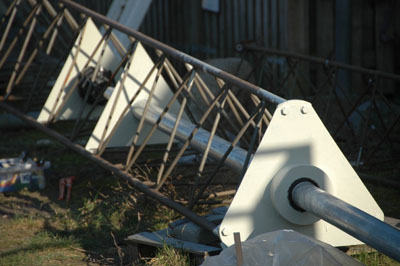

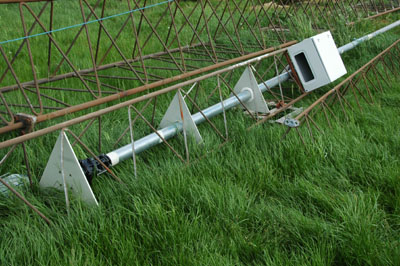

| Top of "Mast section 5" with both "stearing plates" and the house (for electric equipment, cable connectors etc) |
|

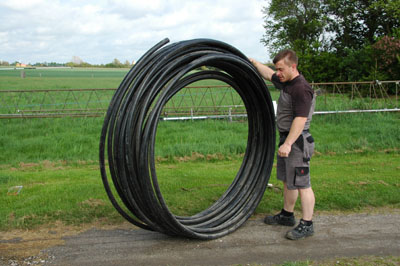

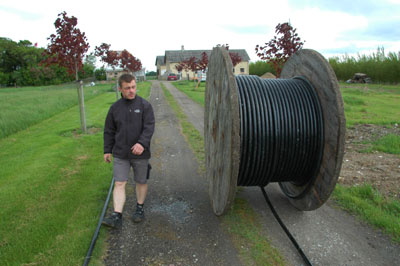

| Antenna cables (1 1/4") |
|
| Antenna cables (1 1/4") |
|
|

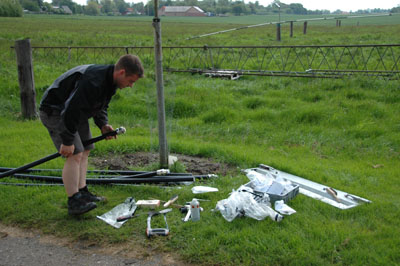

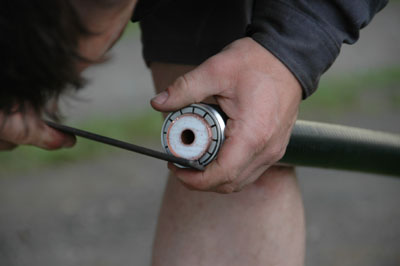

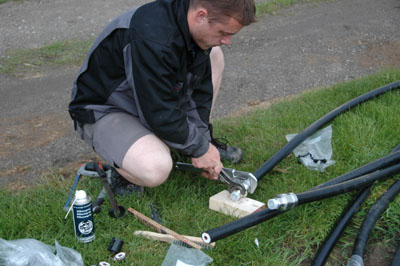

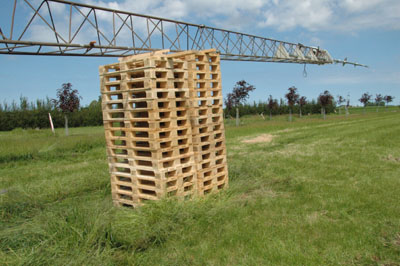

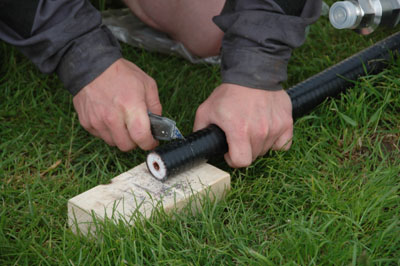

Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors). In background: The boom for the 10 meter yagi, boomlength: 13,20 meters. |
|

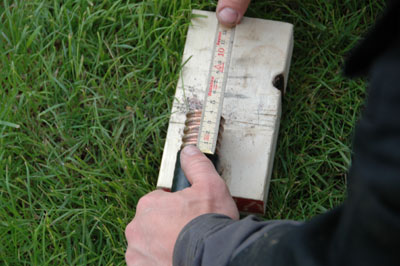

| Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors) |
|

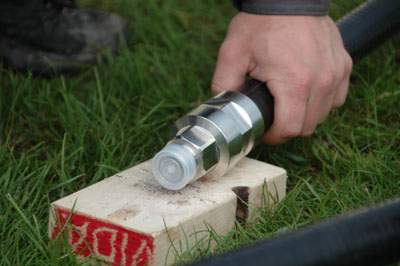

| Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors) |
|
| Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors) |
|
| Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors) |
|
| Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors) |
|
| Connectors: (from 1 1/4" via 7/16" (DIN) to N-connectors) |
|

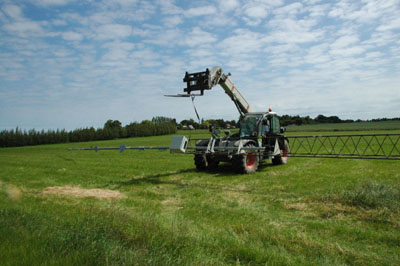

| Teleskop-læsser (a nice machine!!) lifting "section 5" in place |
|
| Teleskop-læsser (a nice machine!!) lifting "section 5" in place |
|
| Teleskop-læsser (a nice machine!!) lifting "section 5" in place |
|

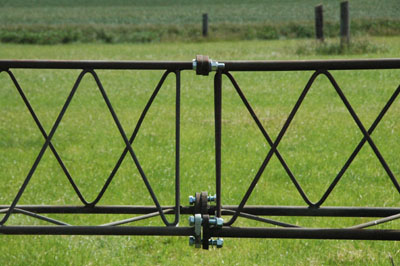

| Bolting section 5 in place |
|

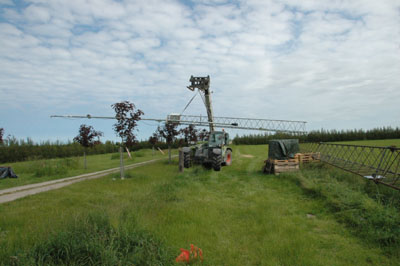

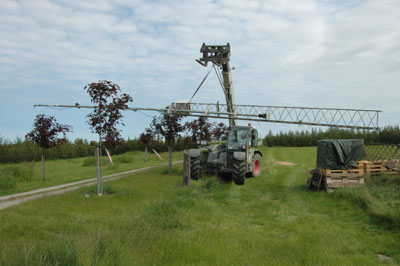

| Now lifting the entire mast |
|

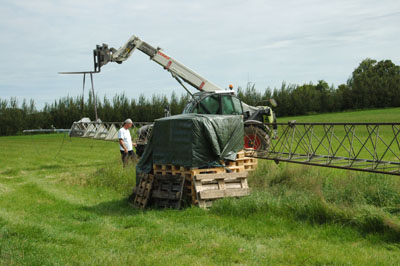

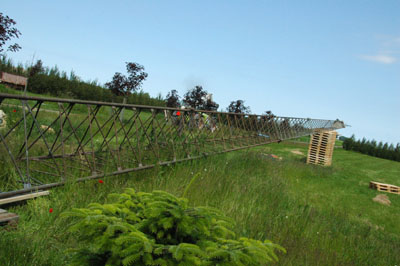

| Now the top tube is approx. 3,5 meter above ground - ready for assembling the antenna park |
|

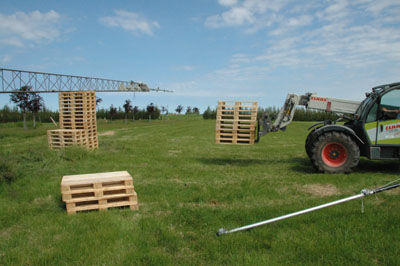

| The tower is lifted approx. 3,5 meters so we can mount all antennas on the top tube |
|
| The tower... |
|
